Product

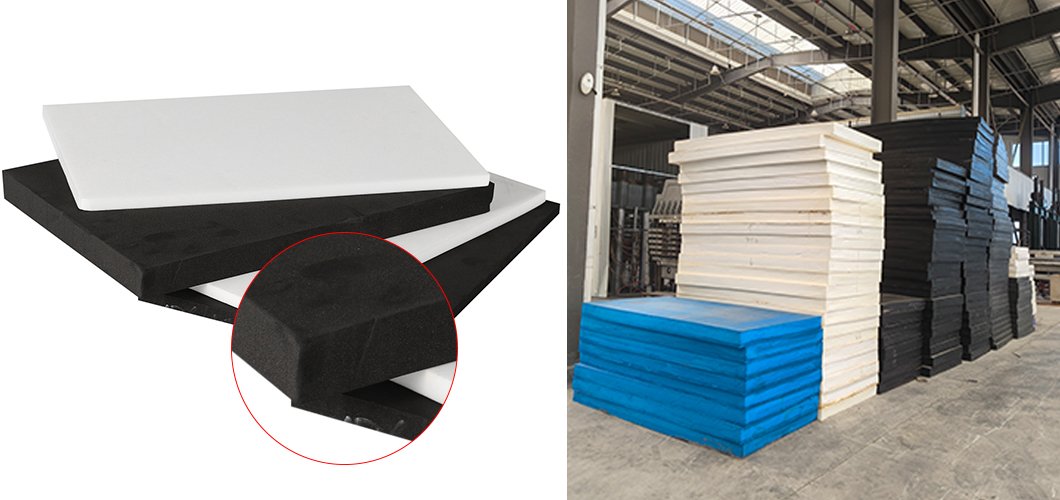

PE foam sheet
Specifications:
PE foam sheet has good properties, such as waterproof, insulation, shock absorption, buffering, rebound, heat insulation, heat preservation, weather resistance, anti-aging, corrosion resistance, light weight, good thermal insulator and moldability.
The applications of PE foam include:
Automotive
Electronics
Footwear and sports
Packaging
Healthcare
Construction
Petroleum industry
Product Details
Specification/Technical Data
| Item | Density | Hardness | Tensile Strength | Elongation | Water Absorption(<=) | 25% Compression press | Sizes(Max) |
| KG/m3 | Shore C | Kpa | % | % | (70 ºC x 22 hour)% | ||
| L20 | 18-22 | 14-22 | 140-160 | 140-170 | 10 | 4.2-5.5 | 100mm * 1 m * 2 m |
| L30 | 26-34 | 20-25 | 150-180 | 160-180 | 10 | 4.5-6 | 100 mm * 1 m * 2 m 100 mm * 1.2 m * 2.4 m |
| L40 | 33-40 | 25-30 | 160-190 | 160-180 | 10 | 1.7-2.5 | 100mm * 1 m * 2 m |
| L45 | 43-50 | 28-35 | 160-190 | 160-180 | 6 | 2-3.5 | 100 mm * 1 m * 2 m 100 mm * 1.2 m * 2.4 m |
| L60 | 60-70 | 35-42 | 170-200 | 160-180 | 6 | 1.5-2.2 | 100 mm * 1 m * 2 m 100 mm * 1.2 m * 2.4 m |
| L80 | 80-90 | 45-55 | 180-210 | 160-180 | 6 | 2-3 | 100 mm * 1 m * 2 m 100 mm * 1.2 m * 2.4 m |
| L100 | 100-120 | 53-60 | 200-240 | 160-180 | 4 | 1.5-3 | 60 mm * 1 m * 2 m |
| L25B2 | 24-30 | 14-19 | 130-150 | 110-150 | 10 | / | 100 mm * 1 m * 2 m |
| L30B2 | 34-42 | 17-28 | 130-160 | 110-150 | 10 | 5-11 | 100 mm * 1 m * 2 m |
| Color: black, white, grey, green , red, blue... | |||||||
Product Application
Value Add Services
Cut to the thickness as customers'needs
Add double side adhesive tape
Cut into the width required by the customer
Die cut or CNC cutting to the part according to the drawing
Company Profile

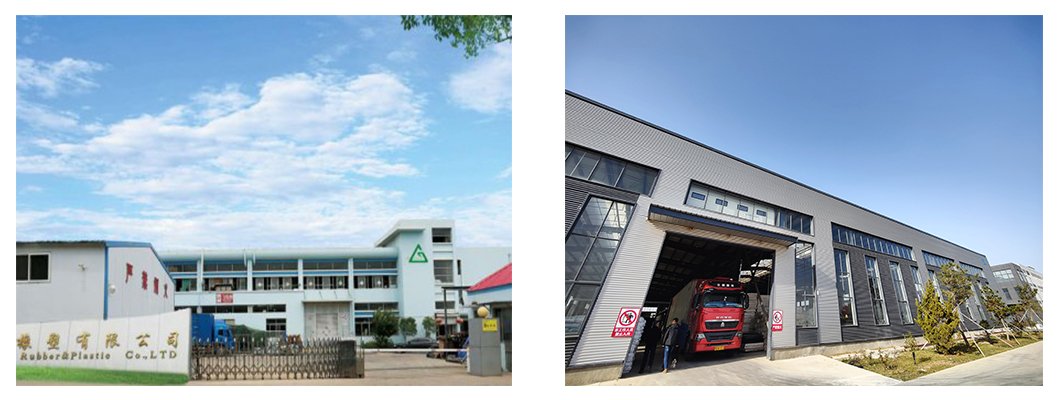

Qingdao Guanshan Industry Co., Ltd. is dedicated to providing Plastic Foam Sheets, Rubber Foam Sheets and Engineered Foam Products. Our production processes include: slitting, slicing, die-cutting, bonding, kiss cutting, CNC processing, backing, and sewing. The materials we supply include: EPDM, PE/EVA, LDPE, EPE plank, LC, PU, XPE, IXPE, CR, Silicone, NBR/PVC heat insulation sheet, heat insulation pipe, felt, water stop foam sheet, Polyamide foam sheet, Acrylic cyanide felt and two component cotton. The size of the product can be customized according to your needs, from 1m * 100m coil, to 1m * 2m sheet, and then to 10mm gasket, we can control it within the tolerance range. Relying on the supply experience in the domestic market, we have the ability to solve the technical problems in the field of HVAC, Package, Noise control and so on.
Quality Quotrol

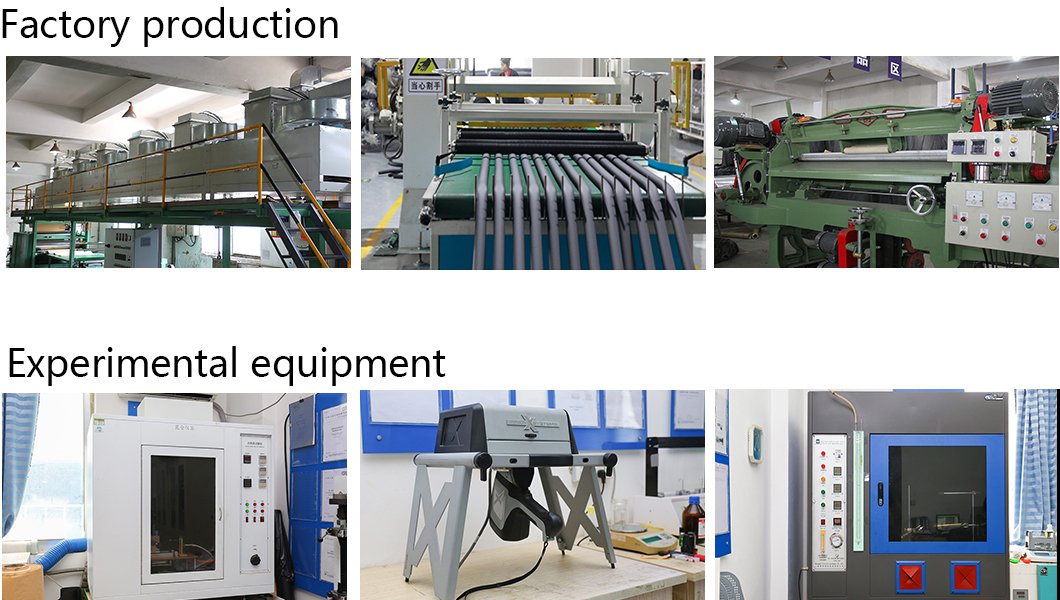

Since the establishment of the factory, we have continuously invested in professional production and testing equipment, including two automatic auxiliary machine rubber mixing centers, two precision rubber mixing centers, four large foam vulcanization production lines, large coating machines, servo precision punches, vertical cutting machines, die-cutting machines, slitting machines, pipe making machines, embossing and laminating machines, and other professional equipment; The laboratory has complete testing equipment, including hazardous substance tester, electronic tensile machine, horizontal and vertical combustion meter, glow wire tester, vulcanizer, constant temperature and humidity tester, initial viscosity tester, viscosity retention tester, thermostat, density balance, Analytical balance, etc.

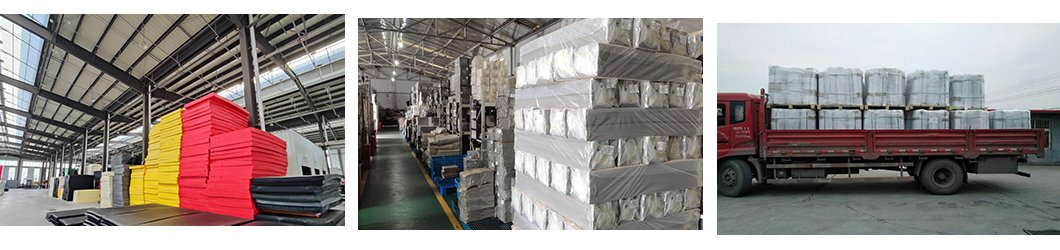

Packaging and Transportation
