Product

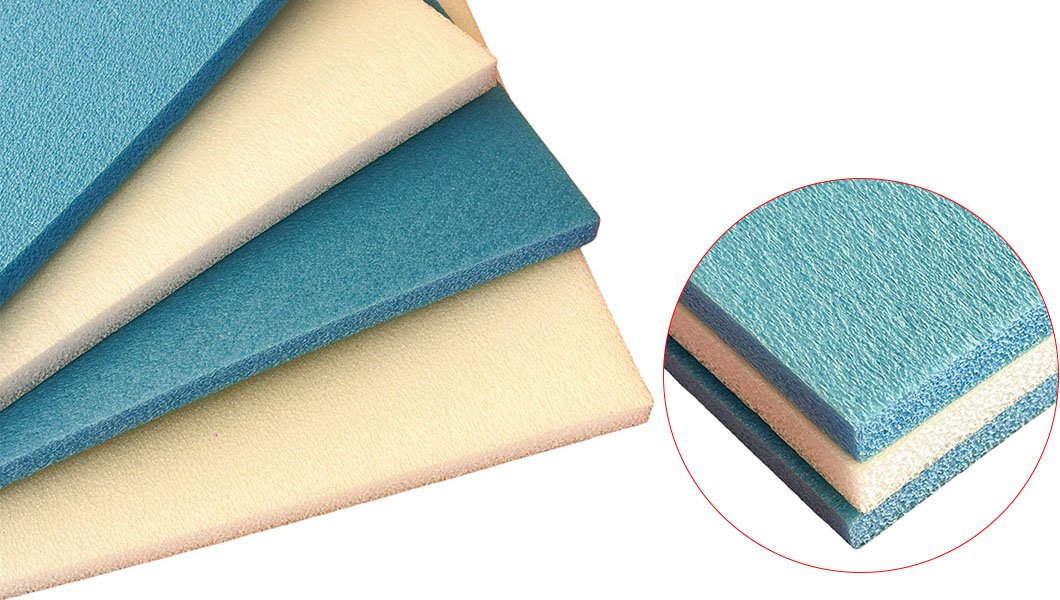

XPE foam sheet
Specifications:
XPE foam sheet has good properties, such as waterproof, insulation, shock absorption, buffering, rebound, heat insulation, heat preservation, weather resistance, anti-aging, corrosion resistance, light weight, good thermal insulator and moldability.
The applications of XPE foam include:
Automotive
Electronics
Footwear and sports
Packaging
Healthcare
Construction
Petroleum industry
Product Details
Specification/Technical Data
| Foaming Ratio/Magnication(Times) | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 35 | Test standard | |
| Density(kg/m³) | 200±-30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 | GB/T6343 | |
| Shore Hardness(°) | Thickness>3mm | 60~70 | 50~60 | 45~50 | 35~45 | 30~35 | 25~30 | 18~25 | 13~18 | GB/T2411 |
| Thickness≤3mm | 55~65 | 45~55 | 35~45 | 25~35 | 20~25 | 20~25 | 15~20 | 15~20 | ||
| Water absorption (%)23ºC+/-2ºC,24h | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.5 | ≤0.5 | GB/8810 | |
| Thermal conductivity(w/m.k) | ≤0.095 | ≤0.084 | ≤0.073 | ≤0.065 | ≤0.055 | ≤0.049 | ≤0.045 | ≤0.040 | GB/T10297 | |
| Tensile strenth(Mpa) | Transverse | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.4 | ≥0.3 | ≥0.2 | ≥0.15 | GB/T6344 |
| Longitudinal | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.5 | ≥0.4 | ≥0.25 | ≥0.2 | ||
| Elongation(%) | Transverse | ≥200 | ≥160 | ≥150 | ≥130 | ≥130 | ≥110 | ≥110 | ≥100 | GB/T6344 |
| Longitudinal | ≥220 | ≥170 | ≥160 | ≥150 | ≥150 | ≥120 | ≥120 | ≥110 | ||
| Tearing strength(KN/m) | Transverse | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 | GB/T10808 |
| Longitudinal | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 | ||
| compression distortions(%)23ºC+/-2ºC,22 | ≤2 | ≤3 | ≤5 | ≤6 | ≤8 | ≤8 | ≤9 | ≤10 | GB/T6669 | |
| Size change rate(70+/-2ºC,22h) | Transverse | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 | |
| Longitudinal | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 | GB/T8811 | |
Product Description
Value Add Services
Cut to the thickness as customers'needs
Add double side adhesive tape
Cut into the width required by the customer
Die cut or CNC cutting to the part according to the drawing

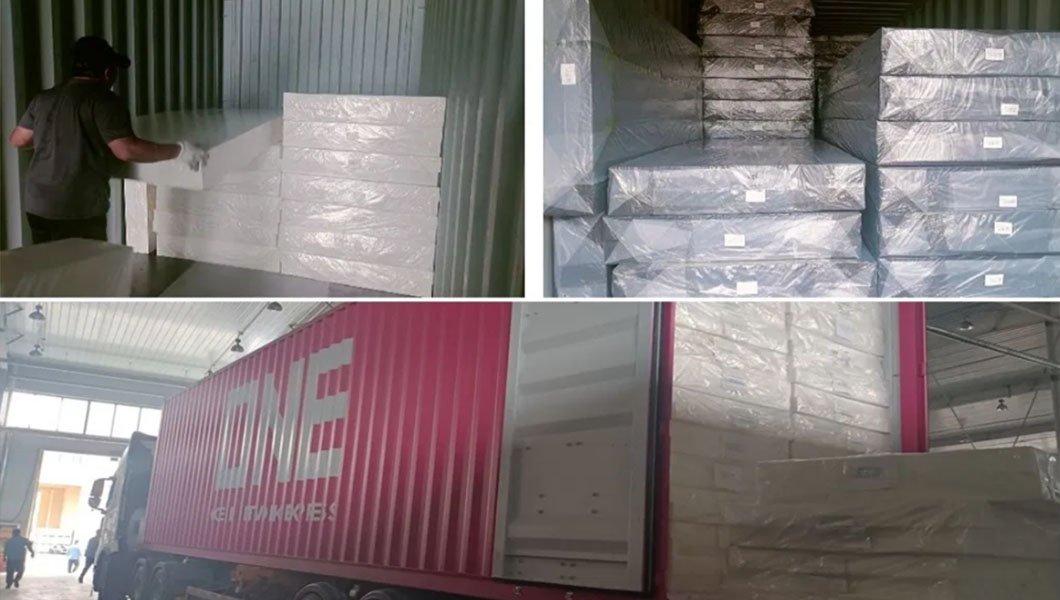

Packaging and Transportation
