Three-Layer EPE + IXPE (XPE) Thermal Insulation Tube

Specifications:

The 3-layer embossed skin insulation pipe is widely used for insulation of air conditioning connecting pipes, solar pipes, underfloor heating pipes, and residential water pipes.

Add To Cart

Inquire Now

Product Details

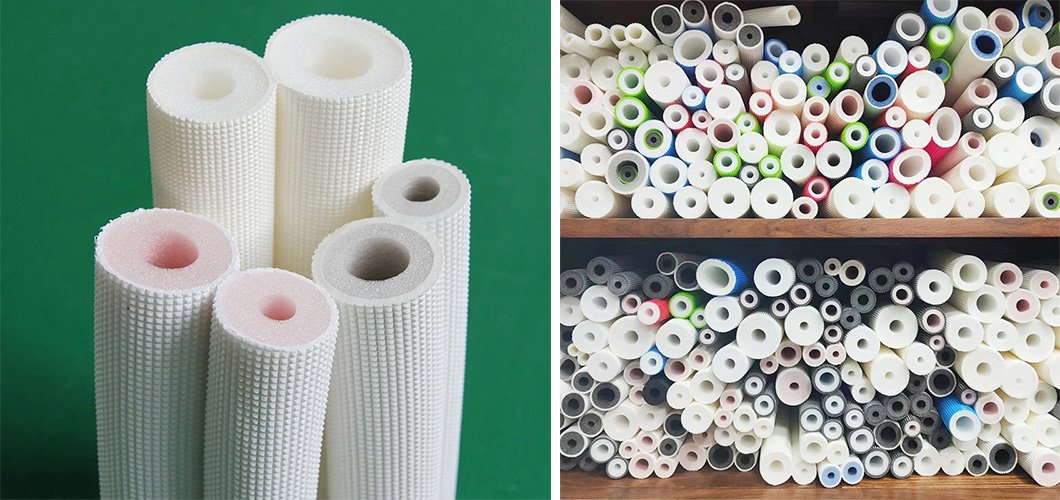

The 3-layer embossed skin insulation pipe is widely used for insulation of air conditioning connecting pipes, solar pipes, underfloor heating pipes, and residential water pipes. It has a three-layer structure, the inner layer is an EPE foam thermal insulation layer, the middle layer is an XPE (Chemical cross-link) or IXPE (Electronic crosslink) foam anti-aging layer, and the outer layer is covered by plastic film to increase beauty and skin toughness. It can be made into single tube and composite double tube, with characteristics such as high temperature resistance and long service life.

1,Technical Parameter:

Thermal conductivity	0.027 - 0.030W/m.K
Compression strength	160KPa
Operating Temperature	-50 - +100℃
Fireproof Performance	B2级
Elastic Restoring Rate	90%
Tensile Strength	180KPa
Flame Resistance oxygen index	18 - 25.5 %
Density	20 – 35 Kg/m3

2, Single Insulation Tube for Air Conditioner

Copper tube Size mm	Copper Pipe OD. mm	Insulation Tube ID. mm	Normal Wall Thickness mm
1/4”	6 / 6.35	9	8 /10 /13 /15 /20 mm
3/8”	9.52	12
1/2”	12 / 12.7	15
5/8”	15.88	19
3/4”	19.05	22
7/8”	22.23	25
1”	25.4	28
1-1/8”	28.58	34
1-1/4”	31.75	36

* Color and dimension (OD, thickness, Length) to customer’s option

3, Twin Insulation Tube for AirConditioner

Copper tube Size (inch)	Copper Pipe OD. (mm)	Insulation Tube ID (mm)	Normal Wall Thickness (mm)
1 HP (1/4”+3/8”)	6.35+9.52	Ф9＋Ф12	8 /10 /13 /15 /20 mm
1.5 HP (1/4”+1/2”)	6.35+12.7	Ф9＋Ф15
2.5 HP (1/4”+5/8”)	6.35+15.88	Φ9 + Φ19
3 HP (3/8”+5/8”)	9.52+15.88	Ф12＋Ф19
4 HP (3/8”+3/4”)	9.52+19.05	Ф12＋Ф22
5 HP (1/2”+3/4”)	12.7+19.05	Ф15＋Ф22

*Color and dimension (OD, thickness, Length) to customer’s option

4, Insulation Tube for Water Pipeline

Plastic Pipe OD Mm	Insulation Tube ID mm	Insulation Tube Wall thickness mm	Standard Length m
16 mm	18 mm	7 mm	1.5m, 2m
20 mm	22 mm	7 mm	1.5m, 2m
25 mm	28 mm	7 mm	1.5m, 2m
32 mm	35 mm	7 mm	1.5m, 2m
40 mm	43 mm	7 mm	1.5m, 2m
50 mm	54 mm	7 mm	1.5m, 2m

* Color and dimension (OD, thickness, Length) to customer’s option
