Product
Closed Cell EVA Foam Sheet
Specifications:
Density: 24–180 kg/m³
Color: white, black, grey
Hardness: 17–50 Shore C
Tensile Strength: Min. 0.15–1.2 kPa
Elongation: Min. 0.5–3 % 25%
Compression Force: 32–170 kPa
Water Absorption: Max. 5–10 % Max
Change under 25% Compression (70°C × 22 hours): 0.5–6 %
Flame Retardant: EN13501-1 Grade D & E (≥3mm, only S150B2)
Maximum Block Net Size: as per grades
Product Details
Specification/Technical Data
| Item | Density | Hardness | Tensile Strength | Elongation at Break | 25%Compression Stress | Water Absorption(≤) | 25% Compression Set | Flammability Rating |
| KG/m3 | Shore C | Kpa | % | Kpa | % | (70 C x 22hours )% | >=3mm | |
| S30 | 26-32 | 15-20 | 200-260 | 180-220 | 32-40 | 6 | 3-6 | / |
| S40 | 37-43 | 20-25 | 230-350 | 170-220 | 50-60 | 6 | 4-6 | / |
| S50 | 45-53 | 22-26 | 280-450 | 170-220 | 51-57 | 6 | 0.5-1.5 | / |
| S65 | 58-67 | 30-38 | 280-450 | 170-220 | 70-82 | 4 | 3.1-4.8 | / |
Product Description

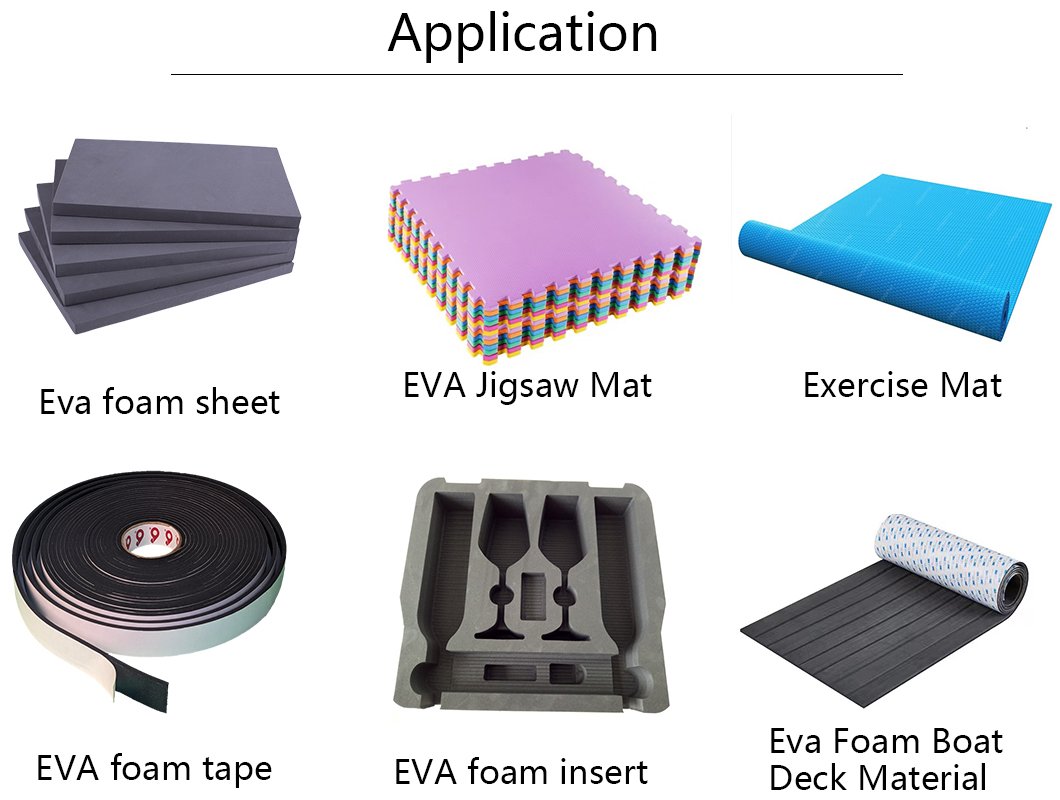

EVA Foam Sheet is a lightweight, flexible and durable closed-cell foam material made from Ethylene Vinyl Acetate (EVA). It features excellent cushioning, shock absorption, water resistance and chemical stability, making it widely used in packaging, automotive, sports equipment, footwear, electronics, construction and industrial sealing applications.
Our EVA foam sheets are available in various thicknesses, densities, hardness levels and colors. Customized cutting, laminating, adhesive backing and die-cut shapes are available to meet different application requirements.
Key Features
Excellent Shock Absorption:
Closed-cell foam structure provides outstanding cushioning and impact protection, helping reduce vibration and damage during transportation and operation.
Lightweight & Flexible:
Low-density EVA foam offers excellent flexibility and easy processing, suitable for various industrial designs and finished products.
Waterproof & Moisture Resistant:
Closed-cell structure prevents water absorption and provides reliable performance in humid environments.
High Resilience & Compression Recovery:
Maintains shape after repeated compression, ensuring long-term durability and stable performance.
Easy Fabrication:
Can be easily die-cut, laminated, embossed, bonded or customized into different shapes and sizes.
Safe & Environmentally Friendly:
Non-toxic, odorless and suitable for applications requiring clean and reliable foam materials.
Key Features
Excellent Shock Absorption:
Closed-cell foam structure provides outstanding cushioning and impact protection, helping reduce vibration and damage during transportation and operation.
Lightweight & Flexible:
Low-density EVA foam offers excellent flexibility and easy processing, suitable for various industrial designs and finished products.
Waterproof & Moisture Resistant:
Closed-cell structure prevents water absorption and provides reliable performance in humid environments.
High Resilience & Compression Recovery:
Maintains shape after repeated compression, ensuring long-term durability and stable performance.
Easy Fabrication:
Can be easily die-cut, laminated, embossed, bonded or customized into different shapes and sizes.
Safe & Environmentally Friendly:
Non-toxic, odorless and suitable for applications requiring clean and reliable foam materials.
Quality Control

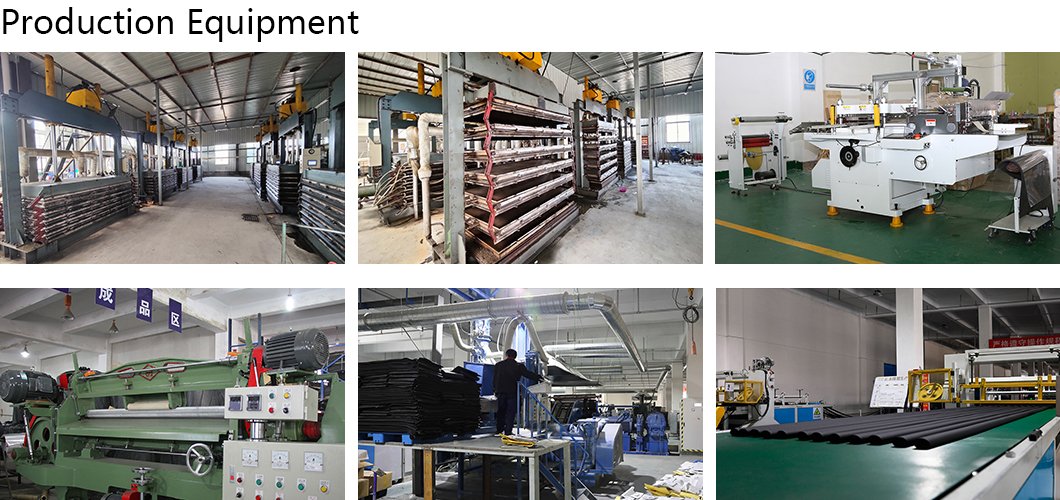

Since the establishment of the factory, we have continuously invested in professional production and testing equipment, including two automatic auxiliary machine rubber mixing centers, two precision rubber mixing centers, four large foam vulcanization production lines, large coating machines, servo precision punches, vertical cutting machines, die-cutting machines, slitting machines, pipe making machines, embossing and laminating machines, and other professional equipment; The laboratory has complete testing equipment, including hazardous substance tester, electronic tensile machine, horizontal and vertical combustion meter, glow wire tester, vulcanizer, constant temperature and humidity tester, initial viscosity tester, viscosity retention tester, thermostat, density balance, Analytical balance, etc.
Packaging and Transportation
FAQ
Q: Are you a factory or a trading company?
A: We are a factory.
Q: How do I place an order?
A: Inquiry with us → Customize with provided designs or samples → Inform us of the usage scenario →Receive our product design recommendations → Negotiate details → Confirm the sample → Sign the contract/pay the deposit → Mass production → Goods are ready → Finalize/shipment → Further cooperation.
Q: What about sample orders?
A: Samples can be provided to you.
Q: Which shipping methods are available?
A: Sea freight express, UPS, DHL and other express delivery options are available. Please contact us if you need another shipping route.
Q: How long does it take for delivery [production] and shipment?
A: The delivery time depends on the quantity you order. It usually takes 15-20 working days.
Q: Some products are missing from my package. What should I do?
A: Please contact our support team, and we will confirm your order contents with the packaging. Compensation for shipment will be made based on the actual situation. We apologize for any inconvenience caused.
Q: How do I confirm payment?
A: We accept Telegraphic Transfer (T/T) and L/C as payment methods. Other payment methods are also acceptable. Please contact us before making a payment through other methods. Additionally, a deposit is feasible, and the balance should be paid before shipment.
