Specification/Technical Data
| ID | Density | Color | Hardness | Tensile Strength | Elongation | 25% compresssion power | Water absorption | 25% compression max change | Flame retardant | Thickness | Block net size (max) |
| KG/m3 | Shore C | Kpa min | % min | Kpa | % max | 70 C x 22 hour | >=3mm | mm | |||
| G180 | 180+/-30 | white | / | 50 | 70 | 5-15 | 10 | 1 | v-0 >=3mm | max 20 mm | 0.5 m * 10 m / 0.5 m * 5m |
| G250 | 250+/-30 | Red | 10+/-5 | 150 | 70 | 20-40 | 10 | 1 | v-0 >=1mm | max 20 mm | 0.5 m * 10 m / 0.5 m * 5m |
| G350 | 350+/-30 | Grey | 15+/-5 | 250 | 70 | 50-80 | 5 | 1 | v-0 >=1mm | max 20 mm | 0.5 m * 10 m / 0.5 m * 5m |
Product Description
-Smooth & Non-stick Surface: Uniform sleek surface ensures no sticking, no marks and no residue after hot pressing and peeling, protecting workpiece surface perfectly.
- Excellent Resilience & Stability: Fine and uniform closed-cell structure provides lasting compression recovery, not easy to deform after long-time use.
- Wide Temperature Resistance: Works stably from -60°C to 300°C, suitable for extreme cold and high-temperature industrial environments.
- Anti-aging & Weather Resistant: Strong resistance to UV, ozone and chemical corrosion, extending service life greatly.
- Safe & Eco-friendly: Made of premium silicone material, non-toxic, odorless and harmless, compliant with industrial safety standards.
- High Insulation & Cushioning: Great thermal insulation, shock absorption and sound insulation performance.
- Customizable: Custom thickness, width, length, hardness, single-sided or double-sided adhesive backing are available.
Applications
Smooth surface silicone foam rolls are widely used in industries requiring high cleanliness, high flatness and non-stick performance:
Heat Press Industry: Heat press cushion, thermal pressing pad, transfer printing backing pad, no-mark hot pressing lining.
Electronics Industry: Precision electronic shock absorption, gap filling, thermal insulation and sealing gaskets for circuit boards and electronic equipment.
Packaging & Sealing: High-temperature heat sealing buffer, anti-stick lining for packaging machines.
Food & Machinery: Food machinery anti-stick gaskets, high-temperature equipment protective lining.
Industrial Insulation & Sealing: Thermal insulation for industrial equipment, anti-slip and shockproof cushioning, high-temperature resistant sealing strips.

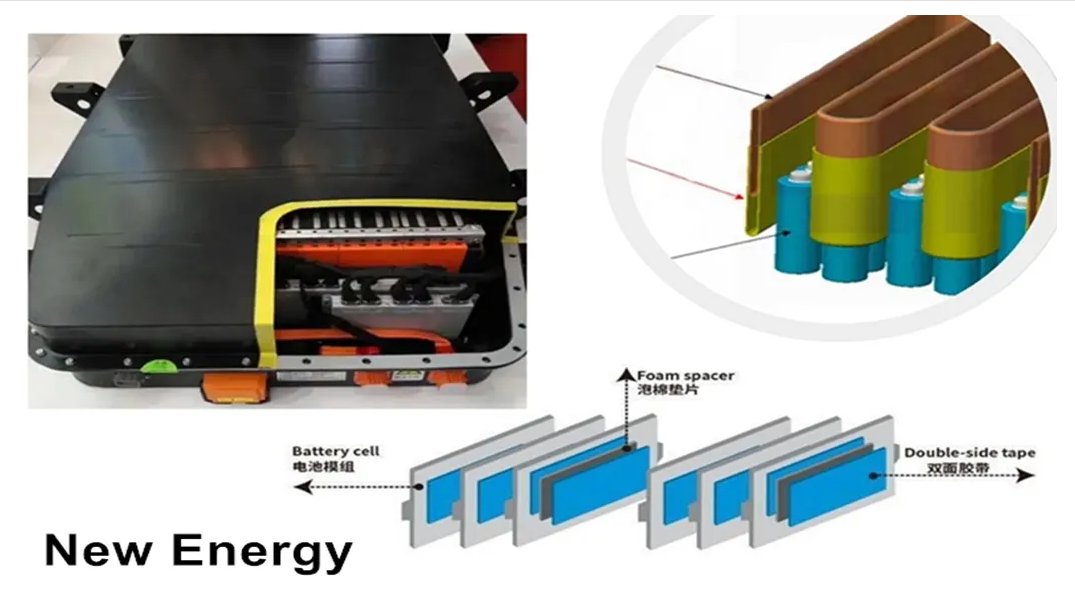

Automotive & New Energy: Buffer and insulation materials for new energy equipment and automotive internal accessories.
Quality Control

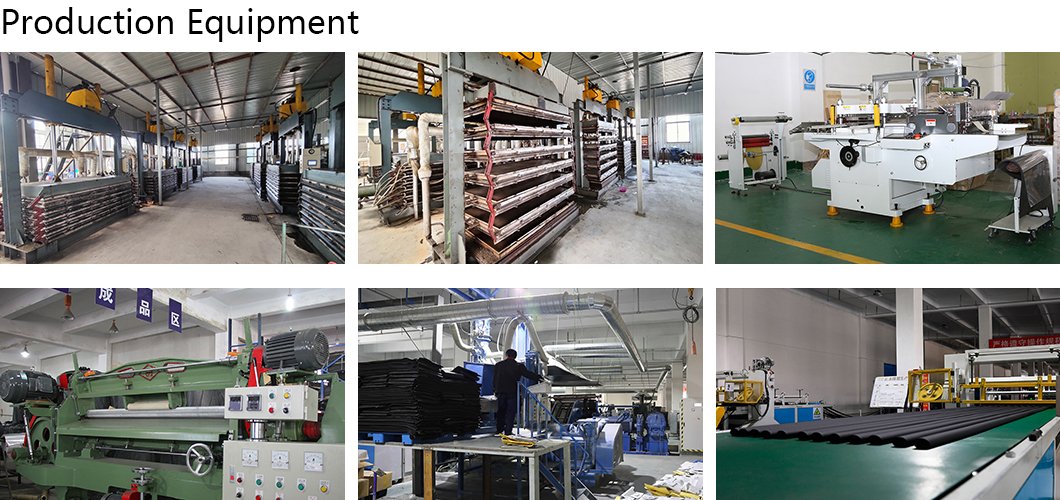

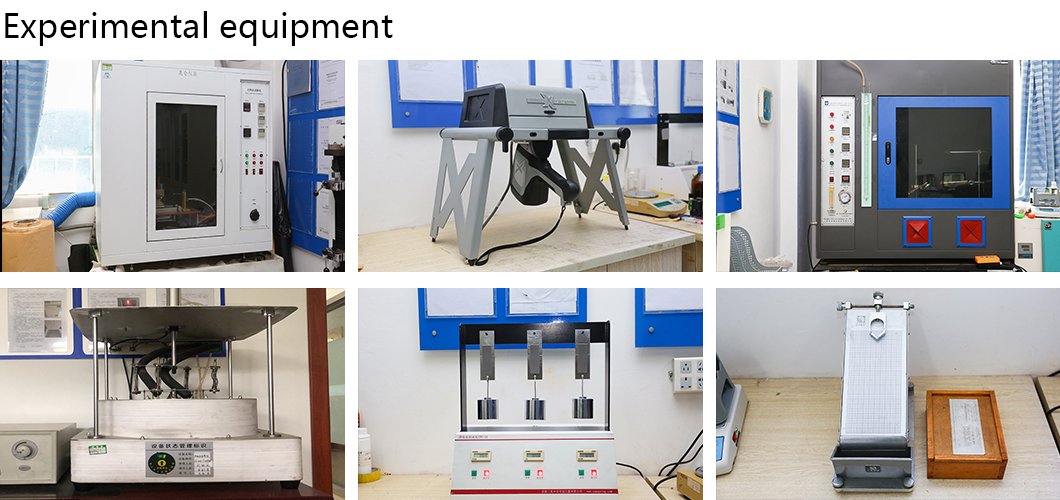

Since the establishment of the factory, we have continuously invested in professional production and testing equipment, including two automatic auxiliary machine rubber mixing centers, two precision rubber mixing centers, four large foam vulcanization production lines, large coating machines, servo precision punches, vertical cutting machines, die-cutting machines, slitting machines, pipe making machines, embossing and laminating machines, and other professional equipment; The laboratory has complete testing equipment, including hazardous substance tester, electronic tensile machine, horizontal and vertical combustion meter, glow wire tester, vulcanizer, constant temperature and humidity tester, initial viscosity tester, viscosity retention tester, thermostat, density balance, Analytical balance, etc.
Custom Service Process

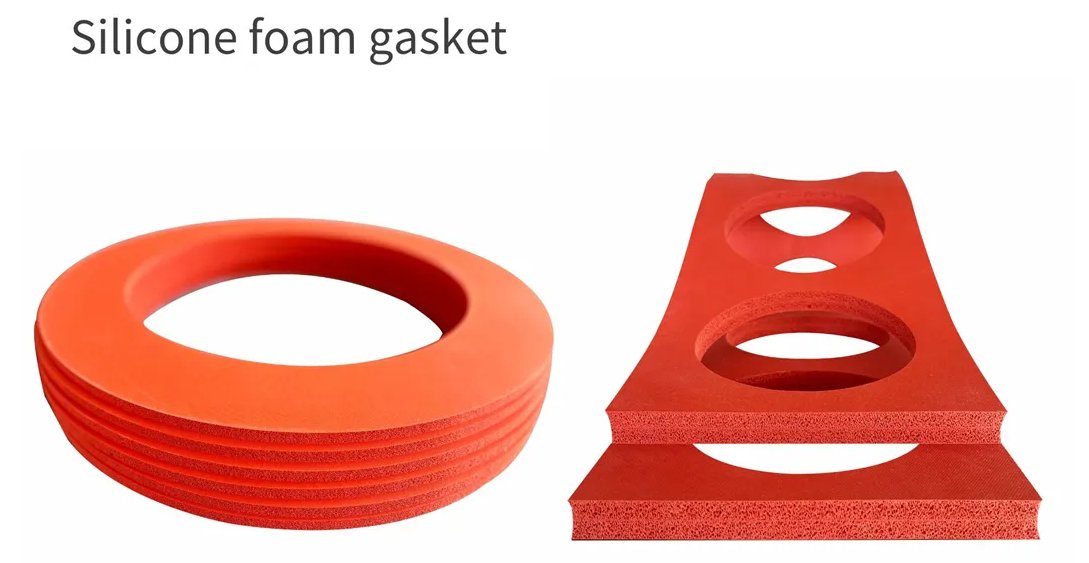

Custom processing service is available. We can precision die-cut our silicone foam sheets into custom silicone foam gaskets based on your drawings or samples. Various shapes and sizes are achievable, and adhesive backing lamination is optional to simplify on-site installation for sealing and cushioning applications.
Packaging and Transportation
FAQ
Q1. What is your lead time?
A1: Usually 15+/-5 days after samples confirmed. It depends on the purchasing quantity and item. For the urgently order, we will try our best to catch your time.
Q2. Can I get the samples?
A2: Yes, we can provide you the free samples, there will be express fee for the new customers, the express fee will be deducted from bulk order.
Q3. What's your major market?
A3: North America, South America,Australia, the Middle East, Southeast Asia, Europe and South Africa etc.
Q4. What are your terms of delivery?
A4: We can accept EXW, FOB, CIF, DAP, etc.
Q5. What is the payment way?
A5: T/T or L/C or discussion.
Q6. How does your factory do quality control?
A6: Quality is priority. We always pay more attention to quality control during the all production process: 1) All raw material is non-toxic, environmental-friendly; 2) Skillful workers is handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. 4) We could do the professional test in our own laboratory.
Should you have other questions, please let us know. We'll add answers here for your further references. Thank you.
