Product

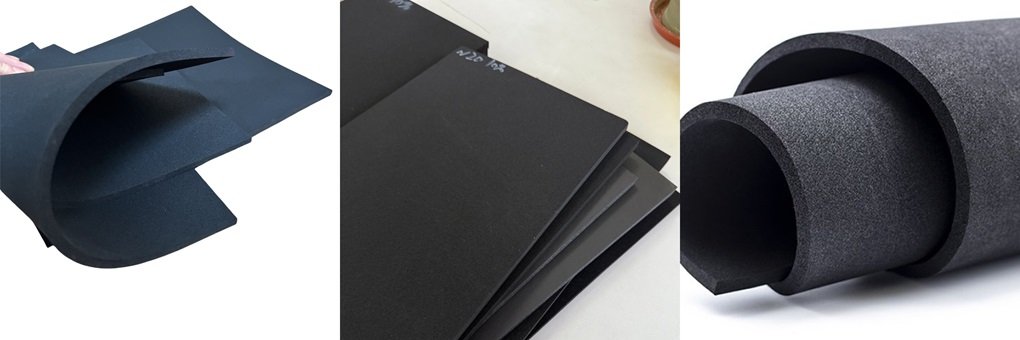

CR Closed Cell Foam Sheet
Specifications:
Material: close cell neoprene foam sheet
Sheet Thickness without skin: 0.5 mm to 50 mm
Sheet Size without skin: 1 m x 2 m Roll
Thickness without skin: 0.5 mm to 20 mm
Sheet Size without skin: 1 m x 5 m / 10 m / 20 m
Density: 150 KG/CBMS, 160 KG/CBMS, 170 KG/CBMS
Flame retardant: HBF or UL 94 V-0 (>=1 mm)
Product Details
CR foam has good chemical stability and utility over a wide temperature range.It also offers a good cost/performance balance.
Key benefits of chloroprene rubber (CR).
Superior Resistance：Excellent resistance to detergents, chemicals, ozone, and harsh weather conditions.
Wide Temperature Range：Maintains stability and flexibility in both extreme cold and heat.
Mechanical Excellence：Outstanding tear and fatigue resistance combined with low flammability.
Strong Adhesion：Features good rubber-to-metal adhesion for reliable bonding in manufacturing
Versatile Applications of CR Closed Cell Foam Sheets
1. Industrial Gaskets & Sealing Solutions
Electrical enclosure gaskets
Mechanical equipment vibration dampening seals
Pipe flange and tank seals
2. HVAC Insulation & Weather Stripping
Air conditioning ductwork thermal insulation
Door and window weather stripping
Refrigeration and cooling system padding
3. Anti-Vibration & Shock Absorption Pads
Heavy machinery anti-vibration pads
Automotive chassis and interior damping
Acoustic isolation backing
4.Sports & Protective Equipment Padding
Water sports gear (Wetsuits, diving suits, surfing accessories
Protective gear (Knee pads, elbow pads, helmets padding
Fitness equipment cushion
5. Protective Packaging & Case Inserts
Precision instrument & camera case inserts
Fragile industrial component packaging
High-end gift box presentation padding
Value Add Services
Cut to the thickness as customers’needs.

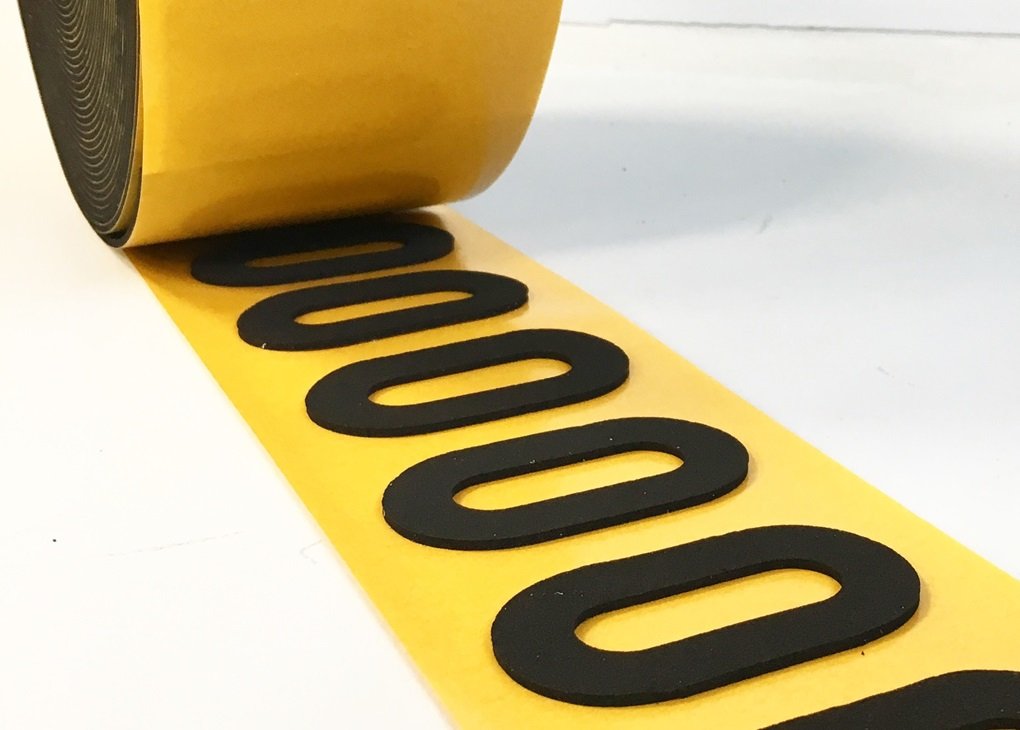

Add double side adhesive tape
Cut into the width required by the customer
Die cut or CNC cutting to the part according to the drawing
FAQ：
Q1: What is a CR closed cell foam sheet used for?
A: CR closed cell foam (chloroprene rubber foam) is widely used for industrial gaskets, seals, anti-vibration pads, HVAC insulation, wetsuits, and protective packaging due to its excellent weather, chemical, and tear resistance.
Q2: Do you support custom sizes and CNC die-cutting?
A: Yes! We offer comprehensive value-added services, including custom thickness slicing, width trimming, double-sided adhesive lamination, and precise CNC or die-cutting based on your CAD drawings.
Q3: What is the temperature resistance of your CR foam?
A: Our CR foam operates stably over a wide temperature range, typically from -40°C to +100°C, making it suitable for demanding indoor and outdoor environments.
