Product
Crosslinked PE Foam Sheet
Specifications:
Apparent Density: 26.6 ~ 230 kg/m³
Shore Hardness (Thickness＞3mm): 13 ~ 70 °
Shore Hardness (Thickness≤3mm): 15 ~ 65 °
Water Absorption (23℃±2℃,24h): ≤0.5 %
Thermal Conductivity: ≤0.095 W/m·K
Tensile Strength‑Transverse: 0.15 ~ 1.3 MPa
Tensile Strength‑Longitudinal: 0.2 ~ 1.5 MPa
Elongation at Break‑Transverse: 100 ~ 200 %
Elongation at Break‑Longitudinal: 110 ~ 220 %
Tearing Strength‑Transverse: 1.3 ~ 9 kN/m
Tearing Strength‑Longitudinal: 1.2 ~ 9 kN/m
Compression Set (23℃±2℃,22h): ≤10 %
Dimensional Change Rate‑Transverse (70±2℃,22h): ≤‑4 ~ ≤‑6 %
Dimensional Change Rate‑Longitudinal (70±2℃,22h): ≤‑6 ~ ≤‑8 %
Product Details
Specification/Technical Data
| Foaming Ratio/Magnication(Times) | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 35 | Test standard | |
| Density(kg/m³) | 200±-30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 | GB/T6343 | |
| Shore Hardness(°) | Thickness>3mm | 60~70 | 50~60 | 45~50 | 35~45 | 30~35 | 25~30 | 18~25 | 13~18 | GB/T2411 |
| Thickness≤3mm | 55~65 | 45~55 | 35~45 | 25~35 | 20~25 | 20~25 | 15~20 | 15~20 | ||
| Water absorption (%)23ºC+/-2ºC,24h | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.5 | ≤0.5 | GB/8810 | |
| Thermal conductivity(w/m.k) | ≤0.095 | ≤0.084 | ≤0.073 | ≤0.065 | ≤0.055 | ≤0.049 | ≤0.045 | ≤0.040 | GB/T10297 | |
| Tensile strenth(Mpa) | Transverse | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.4 | ≥0.3 | ≥0.2 | ≥0.15 | GB/T6344 |
| Longitudinal | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.5 | ≥0.4 | ≥0.25 | ≥0.2 | ||
| Elongation(%) | Transverse | ≥200 | ≥160 | ≥150 | ≥130 | ≥130 | ≥110 | ≥110 | ≥100 | GB/T6344 |
| Longitudinal | ≥220 | ≥170 | ≥160 | ≥150 | ≥150 | ≥120 | ≥120 | ≥110 | ||
| Tearing strength(KN/m) | Transverse | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 | GB/T10808 |
| Longitudinal | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 | ||
| compression distortions(%)23ºC+/-2ºC,22 | ≤2 | ≤3 | ≤5 | ≤6 | ≤8 | ≤8 | ≤9 | ≤10 | GB/T6669 | |
| Size change rate(70+/-2ºC,22h) | Transverse | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 | |
| Longitudinal | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 | GB/T8811 | |
Product Description
XPE Foam Sheet (Cross-Linked Polyethylene Foam Sheet) is a premium closed-cell polyethylene foam produced through a chemical cross-linking process.
Compared with standard PE foam, XPE foam offers finer cell structure, higher mechanical strength, excellent thermal insulation, superior cushioning, and better dimensional stability.
Applications
Our XPE Foam Sheets are widely used in:
Protective Packaging
Automotive Interior Components
HVAC Insulation
Construction Insulation
Electronics Packaging
Sports & Leisure Products
Medical Equipment
Floating Devices
Floor Underlayment
Soundproofing Materials
Thermal Insulation Panels
Tool Box Inserts
Industrial Gaskets and Seals
Company profile

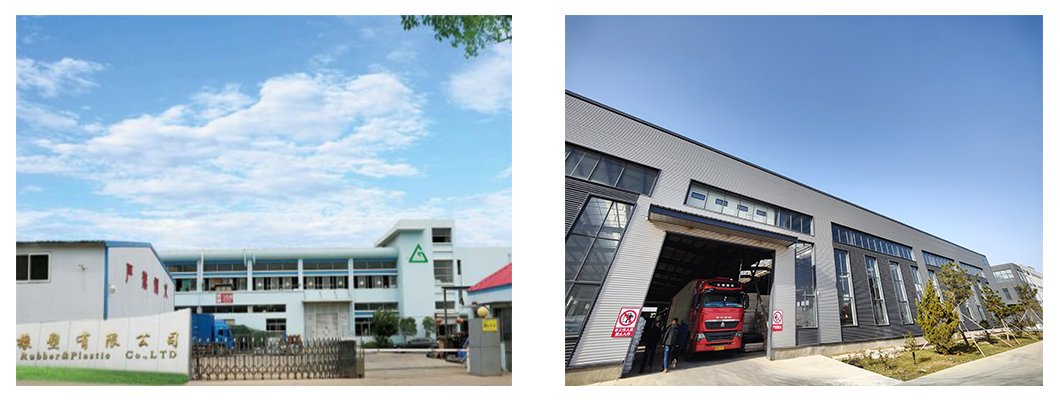

Qingdao Guanshan Industry Co., Ltd. is dedicated to providing Plastic Foam Sheets, Rubber Foam Sheets and Engineered Foam Products. Our production processes include: slitting, slicing, die-cutting, bonding, kiss cutting, CNC processing, backing, and sewing. The materials we supply include: EPDM, PE/EVA, LDPE, EPE plank, LC, PU, XPE, IXPE, CR, Silicone, NBR/PVC heat insulation sheet, heat insulation pipe, felt, water stop foam sheet, Polyamide foam sheet, Acrylic cyanide felt and two component cotton. The size of the product can be customized according to your needs, from 1m * 100m coil, to 1m * 2m sheet, and then to 10mm gasket, we can control it within the tolerance range. Relying on the supply experience in the domestic market, we have the ability to solve the technical problems in the field of HVAC, Package, Noise control and so on.
Quality control

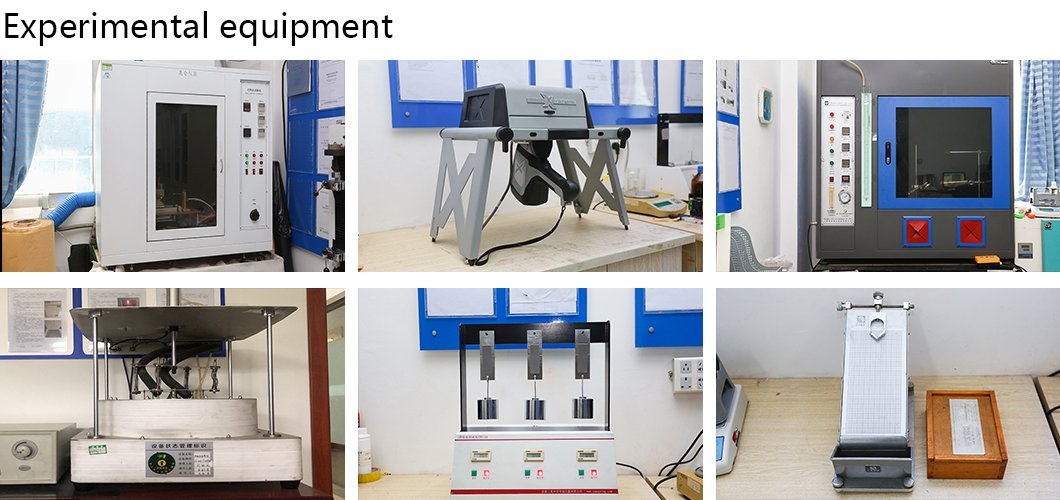

Since the establishment of the factory, we have continuously invested in professional production and testing equipment, including two automatic auxiliary machine rubber mixing centers, two precision rubber mixing centers, four large foam vulcanization production lines, large coating machines, servo precision punches, vertical cutting machines, die-cutting machines, slitting machines, pipe making machines, embossing and laminating machines, and other professional equipment; The laboratory has complete testing equipment, including hazardous substance tester, electronic tensile machine, horizontal and vertical combustion meter, glow wire tester, vulcanizer, constant temperature and humidity tester, initial viscosity tester, viscosity retention tester, thermostat, density balance, Analytical balance, etc.
Packaging and Transportation
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer.
2. Q: How can I order?
A: Inquire with us → Customize with drawings and samples → Tell us of usage scenarios → Receive our product design recommendations → Negotiate details → Confirm samples → Sign contracts/deposits → Mass production → Goods ready → Balance/delivery → Further cooperation.
3. Q: How can I get the sample?
A: Small samples available are free, just freight collect.
We can provide you with samples. Please contact us for details. Once we charge you for the sample fee, please rest assured that it will be a refund when you place your formal order.
4. Q: Which transportation method is available?
A: It is sea express delivery, China express delivery. There are other transportation options available for express delivery. Please contact us if you need another shipping route.
5. Q: What is your lead time for mass production?
A: The lead time depends on the quantity you order. Usually takes 15-20 days.
6. Q: What can I do if some products are missing from my package?
A: Please contact our support team and we will confirm the contents of your order with packaging. We will compensate for the shipment based on the actual situation. We apologize for any inconvenience caused.
7. Q: What is your payment term?
A: We accept T/T, PayPal payment method, other payment methods are also acceptable, please contact us before you pay by other payment methods. Also 30-50% deposit is feasible, the balance should be paid before shipment).
