How Die Cut Gaskets Help Improve Sealing and Assembly Efficiency
2026-09-23
As industrial equipment becomes more compact and assembly requirements become increasingly precise, sealing components need to do more than simply fill a gap. A gasket must match the mating surfaces, maintain its position during assembly, and provide stable sealing performance throughout the service life of the application.
For many applications, die cut gaskets offer an efficient way to produce customized sealing components with consistent dimensions and repeatable quality.
What Is a Die Cut Gasket?
A die cut gasket is a sealing component produced by cutting sheet or roll materials into a specified shape. Depending on the application, the raw material may include rubber, foam, sponge, silicone, EPDM, neoprene, EVA, PE, or other flexible materials.
Unlike a standard sheet gasket that requires additional cutting during assembly, a die cut gasket can be manufactured to the customer's required profile. Holes, slots, openings, mounting features, and irregular contours can all be incorporated into the design.
This makes die cutting particularly useful when a component needs to fit around screws, connectors, pipes, electronic components, or other surrounding structures.
Why Material Selection Matters
The performance of a die cut gasket starts with the material.
Different operating environments require different properties. For example, an outdoor application may require resistance to weathering, ozone, and UV exposure. A mechanical assembly may require good compression recovery and resistance to oils or chemicals. Electronic equipment may require electrical insulation as well as sealing.
For this reason, gasket production should not begin with the cutting process alone. The material, thickness, hardness, density, and adhesive system should first be matched to the actual working conditions.
Common material options include:
EPDM for weather, ozone, and outdoor sealing applications
Neoprene for general industrial sealing and cushioning
Silicone for applications requiring a wider temperature range
PU and PE foam for cushioning, insulation, and lightweight sealing
EVA foam for flexible cushioning and general sealing
Rubber sheets for applications requiring higher mechanical resistance
The final material specification should always be determined according to the customer's application and required performance.
From Drawing to Finished Gasket
A professional die cut gasket supplier needs to control more than the cutting operation. The production process normally begins with reviewing the customer's drawing or sample.
Important details include:
Overall gasket dimensions
Thickness tolerance
Hole and slot locations
Material specification
Hardness or density
Adhesive requirements
Surface treatment
Packaging method
Required production quantity

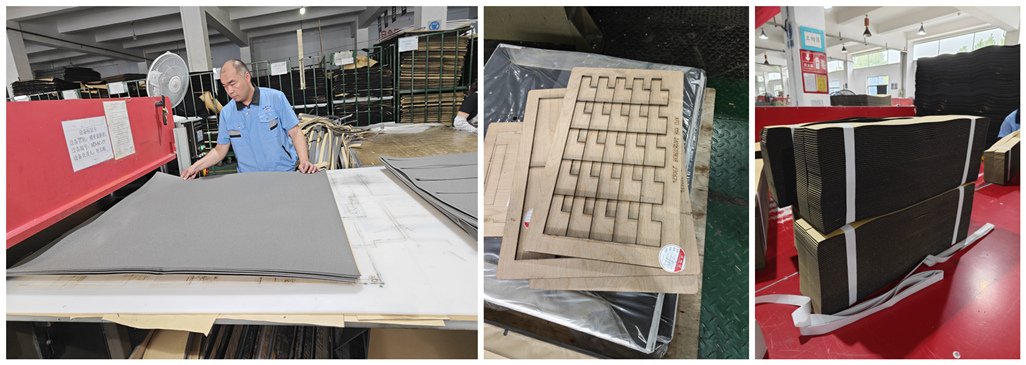

After the design is confirmed, a suitable cutting die can be prepared. For prototypes or low-volume projects, alternative cutting methods such as CNC cutting may also be considered.
This approach allows the manufacturing process to be matched to the product quantity and geometry instead of using the same production method for every project.

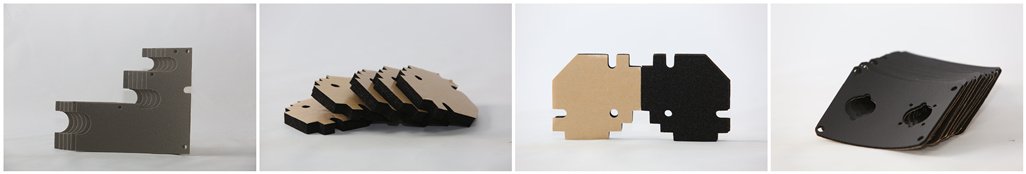

Adhesive-Backed Die Cut Gaskets
Some applications require the gasket to remain firmly attached to one component before final assembly. In these cases, an adhesive backing can be laminated onto the gasket material.
Single-sided adhesive is commonly used when the gasket needs to be fixed to one surface. Double-sided adhesive can be considered when bonding between two components is required.
However, adhesive selection should not be treated as a standard option that works for every application. Surface material, temperature, humidity, assembly pressure, storage conditions, and required bonding strength can all affect adhesive performance.
A practical supplier should therefore evaluate the adhesive together with the gasket material and the customer's actual assembly conditions.
Why Prototypes Are Important
A gasket that looks correct on a drawing may still require adjustment during physical assembly.
Prototype samples allow customers to check:
Whether the gasket fits the mating part
Whether holes and cut-outs are correctly positioned
Whether the thickness is suitable
Whether compression is sufficient
Whether the adhesive bonds properly
Whether installation is convenient
After testing, dimensions or material specifications can be adjusted before mass production. This can reduce the risk of producing a large quantity of parts that require modification.
Quality Control During Production
Consistency becomes especially important when thousands or millions of identical gaskets are required.
Quality control may include dimensional inspection, material verification, thickness measurement, visual inspection, adhesive checking, and sampling according to the agreed quality requirements.
For critical applications, inspection criteria should be established before production starts. This gives both the manufacturer and customer a clear reference for evaluating the finished parts.
Custom Die Cut Gasket Manufacturing
A die cut gasket is rarely a one-size-fits-all product. Different industries have different requirements for materials, shapes, thicknesses, tolerances, adhesive systems, and packaging.
A capable manufacturer should therefore be able to support the project from material selection and prototype development through die making, cutting, inspection, and final packaging.
For customers with technical drawings or existing samples, customized die cut gasket production can provide a practical route to repeatable parts that are ready for assembly.
Conclusion
Die cut gaskets combine customized geometry with repeatable manufacturing, making them suitable for a wide range of sealing, cushioning, insulation, and protection applications.
The key to a successful gasket project is not simply producing a shape that matches a drawing. Material selection, dimensional accuracy, adhesive compatibility, production method, inspection, and application testing all need to work together.
By evaluating these factors before mass production, manufacturers and customers can develop gasket solutions that are better matched to the actual requirements of the finished product.
