Product
Product Details
Specification/Technical Data
| ID | Density | Color | Hardness | Tensile Strength | Elongation | 25% compresssion power | Water absorption | 25% compression max change | Flame retardant | Thickness | Block net size (max) |
| KG/m3 | Shore C | Kpa min | % min | Kpa | % max | 70 C x 22 hour | >=3mm | mm | |||
| G180 | 180+/-30 | white | / | 50 | 70 | 5-15 | 10 | 1 | v-0 >=3mm | max 20 mm | 0.5 m * 10 m / 0.5 m * 5m |
| G250 | 250+/-30 | Red | 10+/-5 | 150 | 70 | 20-40 | 10 | 1 | v-0 >=1mm | max 20 mm | 0.5 m * 10 m / 0.5 m * 5m |
| G350 | 350+/-30 | Grey | 15+/-5 | 250 | 70 | 50-80 | 5 | 1 | v-0 >=1mm | max 20 mm | 0.5 m * 10 m / 0.5 m * 5m |
Product Description
- Smooth & Non-stick Surface: Uniform sleek surface ensures no sticking, no marks and no residue after hot pressing and peeling, protecting workpiece surface perfectly.
- Excellent Resilience & Stability: Fine and uniform closed-cell structure provides lasting compression recovery, not easy to deform after long-time use.
- Wide Temperature Resistance: Works stably from -60°C to 300°C, suitable for extreme cold and high-temperature industrial environments.
- Anti-aging & Weather Resistant: Strong resistance to UV, ozone and chemical corrosion, extending service life greatly.
- Safe & Eco-friendly: Made of premium silicone material, non-toxic, odorless and harmless, compliant with industrial safety standards.
- High Insulation & Cushioning: Great thermal insulation, shock absorption and sound insulation performance.
- Customizable: Custom thickness, width, length, hardness, single-sided or double-sided adhesive backing are available.
Applications
Smooth surface silicone foam rolls are widely used in industries requiring high cleanliness, high flatness and non-stick performance:
Heat Press Industry: Heat press cushion, thermal pressing pad, transfer printing backing pad, no-mark hot pressing lining.
Electronics Industry: Precision electronic shock absorption, gap filling, thermal insulation and sealing gaskets for circuit boards and electronic equipment.
Packaging & Sealing: High-temperature heat sealing buffer, anti-stick lining for packaging machines.
Food & Machinery: Food machinery anti-stick gaskets, high-temperature equipment protective lining.
Industrial Insulation & Sealing: Thermal insulation for industrial equipment, anti-slip and shockproof cushioning, high-temperature resistant sealing strips.

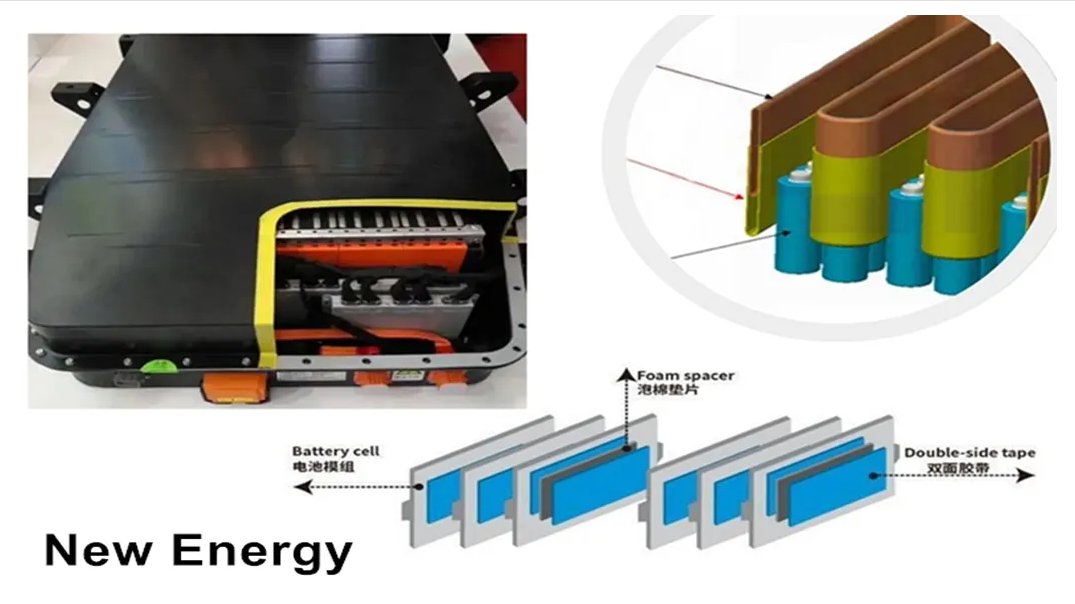

Automotive & New Energy: Buffer and insulation materials for new energy equipment and automotive internal accessories.
Packaging and Transportation
