Open Cell Silicone Foam Sheet for Ironing Table

Follow us:

Product

Steam press silicone foam

Specifications:

Density: 0.25 ± 0.03 g/m³

Hardness: 10-15 Shore C

Thickness: 3 mm to 40 mm

Max Width: 1000-1200 mm

Length: 10 m or customized to your needs

Notes: Thickness greater than 12 mm is produced by lamination bonding.

Color: Red, grey, translucent, black, blue, yellow


Add To Cart
Inquire Now

Product Details

1. Product Description

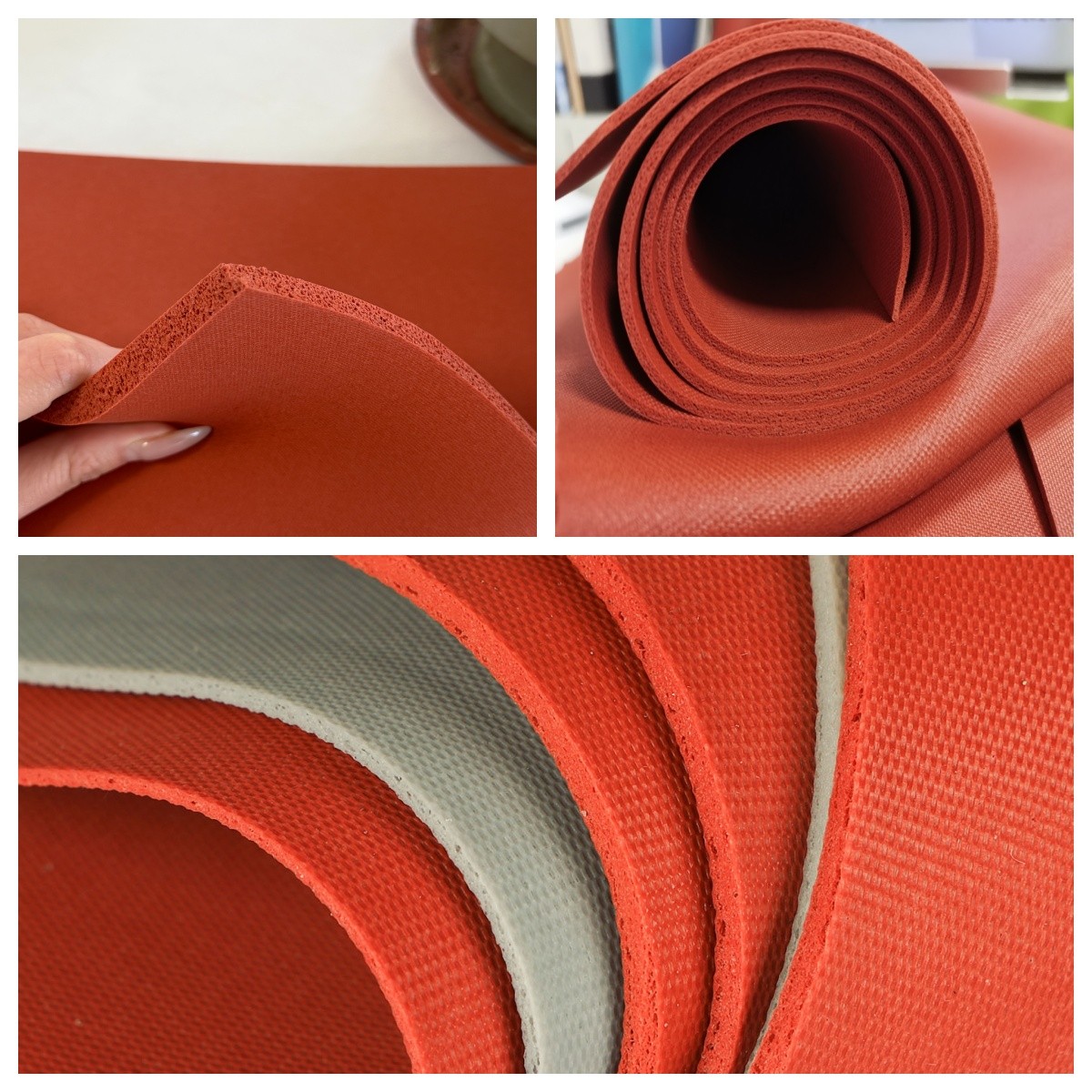

Engineered specifically for commercial ironing tables and laundry garment-pressing machinery, our Open Cell Silicone Foam Sheet offers exceptional steam permeability, uniform resilience, and high-temperature resistance. Unlike closed-cell foams, the interconnected open-cell pore structure allows efficient steam and moisture vacuum extraction during pressing cycles.

Manufactured from premium-grade virgin silicone rubber, this foam pad maintains long-lasting elasticity, prevents flattening under continuous mechanical stress, and ensures smooth, crease-free garment finishing. Ideal for industrial laundry plants, dry cleaners, and apparel manufacturing factories.

2. Technical Specifications Table

Property / ParameterTechnical Specification
Product NameOpen Cell Silicone Foam Sheet for Ironing Table
Density0.25±0.03 g/cm³
Hardness10 Shore C
Thickness Range3 mm to 40 mm
Max WidthUp to 1200 mm
Length10 meters per roll (or customized to your specifications)
Manufacturing Note

Thickness greater than 12 mm is produced via precision

lamination bonding.

Color OptionsRed, Grey, Translucent, Black, Blue, Yellow
Temperature Range -40°C to +220°C (Continuous)

3. Key Product Advantages

  • Superior Steam Permeability: The highly interconnected open-cell structure facilitates rapid, unhindered steam passage and moisture extraction, boosting ironing efficiency.

  • High Temperature Durability: Withstands sustained working temperatures up to $220^\circ\text{C}$ without hardening, degrading, or emitting unpleasant odors during pressing.

  • Excellent Resilience & Cushioning: Provides optimal surface softness and immediate rebound memory, preventing fabric imprint marks and protecting delicate garments.

  • Customizable Sizes & Colors: Available in diverse thickness tiers and vibrant colors to match specific table dimensions, branding, or operational requirements.

4. Frequently Asked Questions (FAQ)

  • Q1: What is the difference between open-cell and closed-cell silicone foam for ironing tables?

    • A: Open-cell foam features porous, interconnected channels that allow steam and air to pass completely through the pad, which is vital for vacuum ironing tables. Closed-cell foam is gas-tight and non-porous, making it unsuitable for steam suction applications.

  • Q2: How is thickness greater than 12 mm manufactured?

    • A: Thicknesses exceeding $12\text{ mm}$ are skillfully manufactured using advanced high-temperature lamination bonding. This ensures structural integrity and uniform thickness across the entire sheet without compromising performance.

  • Q3: Can we request custom sizes or specific roll lengths?

    • A: Yes! Standard roll length is $10\text{ meters}$ with a maximum width of $1200\text{ mm}$. We fully support custom sheet dimensions, die-cut shapes, or specific thicknesses tailored to your exact machinery specifications.

  • Q4: What is the lifespan of this silicone foam pad in a commercial laundry setting?

    • A: Thanks to premium anti-aging silicone polymers, our foam exhibits exceptional tear strength and compression recovery, offering a significantly longer operational lifespan than traditional rubber or felt pads.

    • 111
