Technical data sheet
| item | Standard | TSA | TSB | TSC | TSD | TSE |
| Density(g/cm³) | ASTM D1056 | 0.4±0.05 | 0.45±0.05 | 0.5±0.05 | 0.6±0.05 | 0.7±0.05 |
| Hardness (Shore C) | ASTM D1056 | 10±5 | 15±5 | 25±5 | 35±5 | 45±5 |
| Color | Visual Inspection | Black, Grey, Red | Black, Grey, Red | Black, Grey, Red | Black, Grey, Red | Black, Grey, Red |
| Thickness (mm) | Caliper | 0.8-12.5 | 0.8-12.5 | 0.8-12.5 | 0.8-12.5 | 0.8-12.5 |
| Width (mm) | Ruler | <1000 | <1000 | <1000 | <1000 | <1000 |
| Surface | Visual Inspection | Texturized | Texturized | Texturized | Texturized | Texturized |
| Foam Type | Design | Close Cell | Close Cell | Close Cell | Close Cell | Close Cell |
| Compression(%) | ASTM D1056-Test D | <5 (70ºC) | <5 (70ºC) | <5 (70ºC) | <5 (70ºC) | <5 (70ºC) |
| Compression(%) | ASTM D1056-Test D | <10 (100ºC) | <10 (100ºC) | <10 (100ºC) | <10 (100ºC) | <10 (100ºC) |
| Tensile Strength (Kpa) | ASTM D412 | ≥350 | ≥550 | ≥650 | ≥700 | ≥1150 |
| Elongation(%) | ASTM D412 | ≥300 | ≥300 | ≥300 | ≥200 | ≥150 |
| Flame retardant | UL94 | UL94-VHB | UL94-VHB | UL94-VHB | UL94-VHB | UL94-VHB |
| Toxic Gas Emission | SMC-S00 | Pass | Pass | Pass | Pass | Pass |
| Water Absorption | Intemal tset 24hrs | <5% | <3% | <3% | <3% | <3% |
| Dielectric constant | ASTM D150 | 1.37 | 1.37 | 1.37 | 1.37 | 1.37 |
| Dielectric strength(KV/mm) | ASTM D149 | 3.96 | 3.96 | 3.96 | 3.96 | 3.96 |
| Volume resistivity(ohm-cm) | ASTM D257 | 10 raised to the 15th power | 10 raised to the 15th power | 10 raised to the 15th power | 10 raised to the 15th power | 10 raised to the 15th power |
| Low temperature deflection at -55°C | ASTM D1056 | Pass | Pass | Pass | Pass | Pass |
| Recommended use temperature (ºC) | SAE J2236 | -55~200 | -55~200 | -55~200 | -55~200 | -55~200 |
| Recommended maximum temperature for intermittent use (ºC) | Lab in factory | 250 | 250 | 250 | 250 | 250 |
Product Description

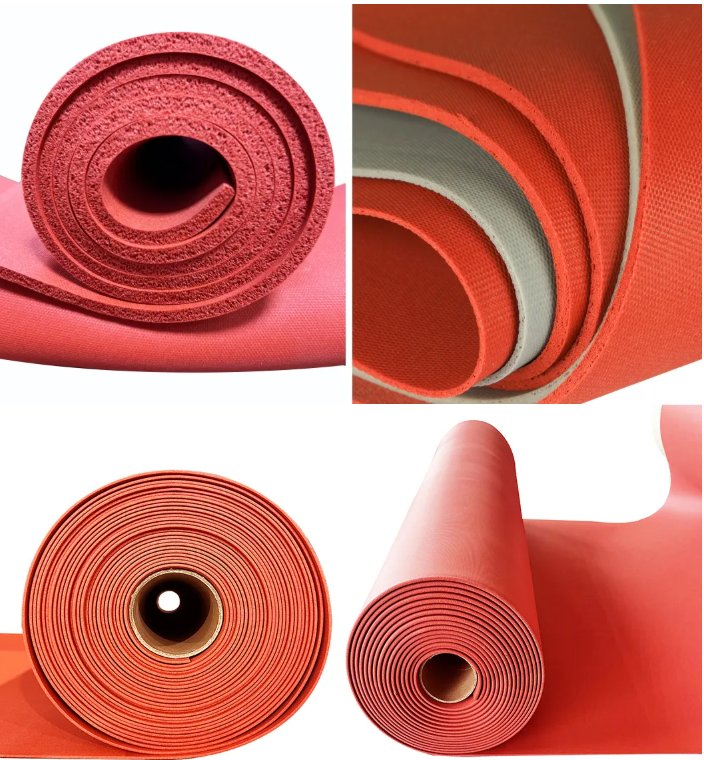

Our Textured Surface Silicone Foam Sheet features a unique fabric-embossed surface combined with an advanced closed-cell/semi-open silicone sponge structure.
Engineered for high-performance applications, it delivers superior non-slip grip, exceptional heat resistance, and long-lasting cushioning under extreme industrial environments.
Whether used for thermal insulation, anti-vibration padding, heat press transferring, or heavy-duty sealing, this textured silicone foam sheet provides unmatched durability and operational reliability.
Applications
Smooth surface silicone foam rolls are widely used in industries requiring high cleanliness, high flatness and non-stick performance:
Heat Press Industry: Heat press cushion, thermal pressing pad, transfer printing backing pad, no-mark hot pressing lining.
Electronics Industry: Precision electronic shock absorption, gap filling, thermal insulation and sealing gaskets for circuit boards and electronic equipment.
Packaging & Sealing: High-temperature heat sealing buffer, anti-stick lining for packaging machines.
Food & Machinery: Food machinery anti-stick gaskets, high-temperature equipment protective lining.
Industrial Insulation & Sealing: Thermal insulation for industrial equipment, anti-slip and shockproof cushioning, high-temperature resistant sealing strips.
Automotive & New Energy: Buffer and insulation materials for new energy equipment and automotive internal accessories.
Quality Control
Since the establishment of the factory, we have continuously invested in professional production and testing equipment, including two automatic auxiliary machine rubber mixing centers, two precision rubber mixing centers, four large foam vulcanization production lines, large coating machines, servo precision punches, vertical cutting machines, die-cutting machines, slitting machines, pipe making machines, embossing and laminating machines, and other professional equipment; The laboratory has complete testing equipment, including hazardous substance tester, electronic tensile machine, horizontal and vertical combustion meter, glow wire tester, vulcanizer, constant temperature and humidity tester, initial viscosity tester, viscosity retention tester, thermostat, density balance, Analytical balance, etc.

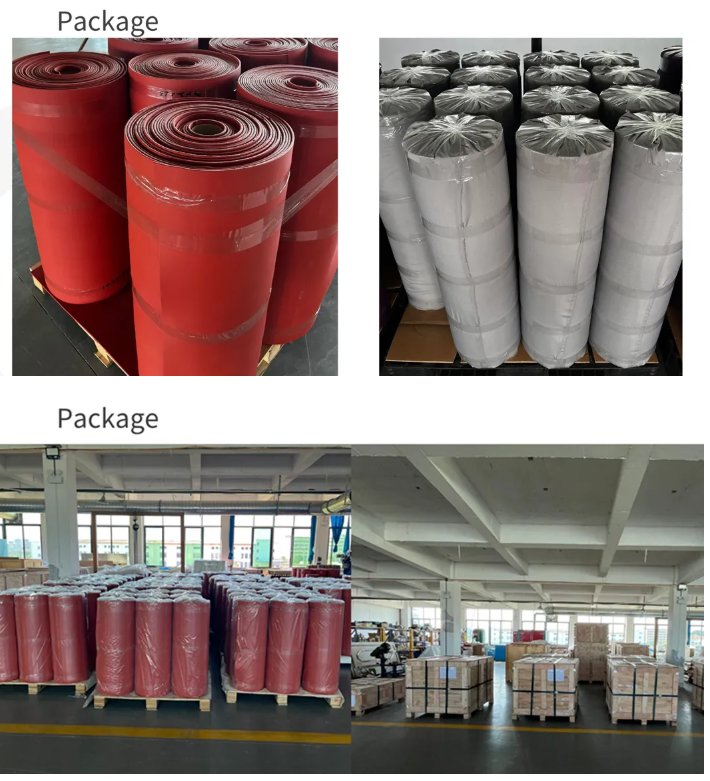

Packaging and Transportation
FAQ
Q1. What is your lead time?
A1: Usually 15+/-5 days after samples confirmed. It depends on the purchasing quantity and item. For the urgently order, we will try our best to catch your time.
Q2. Can I get the samples?
A2: Yes, we can provide you the free samples, there will be express fee for the new customers, the express fee will be deducted from bulk order.
Q3. What's your major market?
A3: North America, South America,Australia, the Middle East, Southeast Asia, Europe and South Africa etc.
Q4. What are your terms of delivery?
A4: We can accept EXW, FOB, CIF, DAP, etc.
Q5. What is the payment way?
A5: T/T or L/C or discussion.
Q6. How does your factory do quality control?
A6: Quality is priority. We always pay more attention to quality control during the all production process: 1) All raw material is non-toxic, environmental-friendly; 2) Skillful workers is handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. 4) We could do the professional test in our own laboratory.
Should you have other questions, please let us know. We'll add answers here for your further references. Thank you.
