Extrusion polystyrene (XPS) thermal insulation boards are made with polystyrene. Through special process,the hard expanded board is extruded. There is a sealed and foamedstructure, which is an environmental protection material with theperformances of high-resist compression, waterproof, moisture-proof, ainproof,light weight,anti-corrosion, long service life and low conductivity factorand so on.

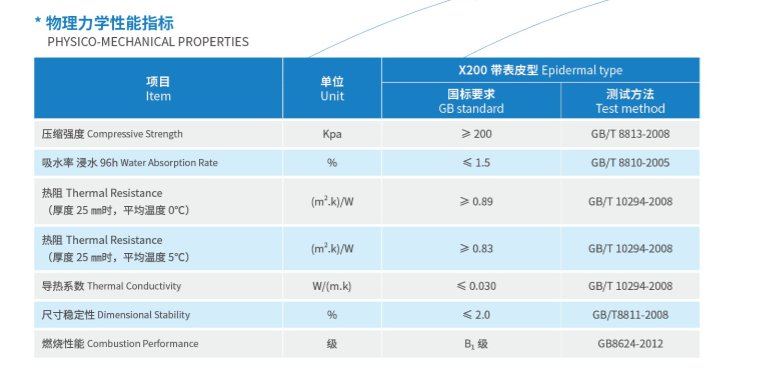

XPS Foam Board Properties

XPS foam is an insulating panel manufactured from fully recyclable material. It is produced from extruded polystyrene, a material that does not deteriorate. The foam structure consists of very fine closed cells that provide excellent physical and mechanical characteristics.

Heat Insulation Performance

XPS foam does not conduct heat due to its special cell structure. When XPS panels are installed as wall liners or floor underlays, heat from the room or truck body is reflected back toward the surface. This helps prevent heat loss, thereby lowering energy consumption and reducing the carbon footprint.

Damp Protection

XPS foam products are also water-repellent. They do not rot, support mold growth, or allow dampness to penetrate the structure. XPS panels are resistant to cement, plaster, and most alkalis, except for organic solvents.

Soundproof

In addition, XPS foam has excellent sound-insulating properties, making truck or room floors quieter when walked on. It is an ideal product for reducing sound transmission to levels below the desired threshold.

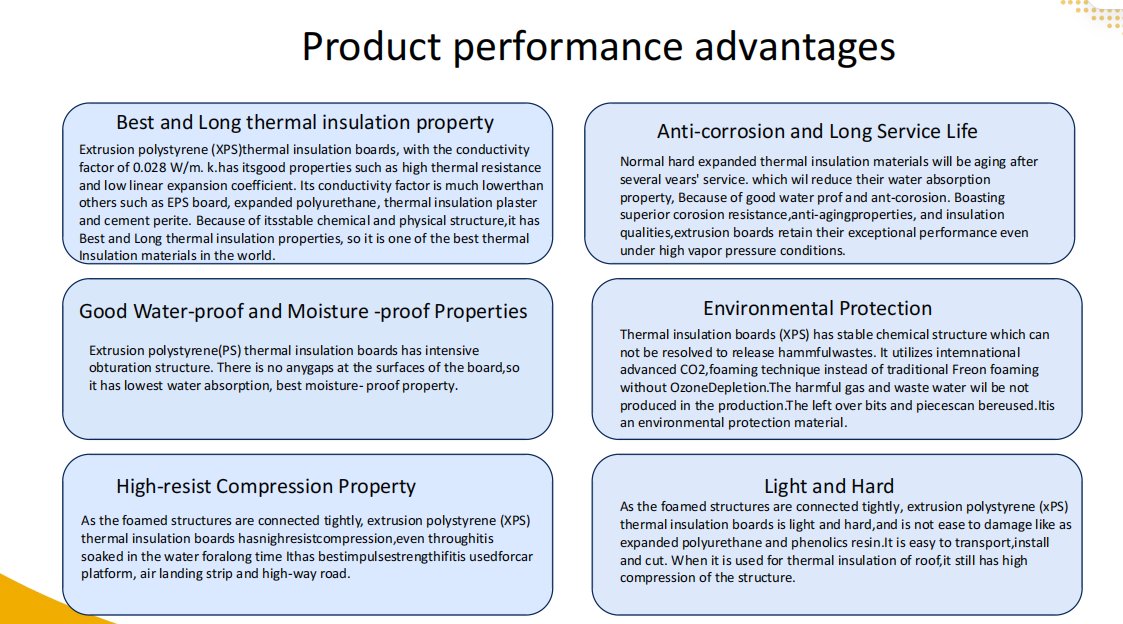

Excellent performance：

•     High- Resist Compression

•     Waterproof

•     Moisture Proof

•     Air Proof

•     Light Weight

•     Anti-Corrosion

•     Long Service Life

•     Low Conductivity Factor

Product Section

Cast-in-place Concrete Insulation Composite Formwork without Demolition

Technical Features

1. Effortless Design and Construction Process

Maintains structural integrity of cast-in-place concrete frames Minimal additional structural weight

No complex mechanical calculations needed Standard floor construction: 4–6 days

2. Superior Mechanical and Insulation Performance Bending load resistance > 2000N (meets bamboo glue board standards)

Insulation layer thickness adjustable

Meets 65% and 75% energy-saving standards

3. Exceptional Fire Resistance

Insulation layer encased in polymer cement mortar on both sides

Inorganic mortar protective layer > 30mm thick Reduces fire risk during construction and use

4. Effectively Mitigates Quality Concerns Innovative insulation transition layer Flexible gradient structural design Prevents plaster layer hollowing and cracking

5. Accelerates Construction Timeline

Combines insulation and formwork into one process Reduces construction steps and formwork usage Shortens construction time by over 3 months Lowers overall project cost
