Data Sheet
| Item | Density | Hardness | Tensile Strength(>=) | Elongation(>=) | 25% Compression | water absorption(<=) | 25% Compression Change(<=) | Flame Retardant |
| EPDM | KG/m3 | Shore C | Kpa | % | Kpa | % | (70 C x 22 H)% | >=3mm |
| B08 | 110+/-30 | 8+/-3 | 200 | 150 | 20-40 | 10 | 25 | NA |
| B10 | 130+/-30 | 10+/-3 | 300 | 150 | 20-50 | 5 | 25 | NA |
| B15 | 140+/-30 | 15+/-3 | 300 | 150 | 20-50 | 5 | 25 | NA |
| B20 | 150+/-30 | 20+/-3 | 400 | 150 | 35-65 | 5 | 25 | NA |
| B20V | 150+/-30 | 20+/-3 | 300 | 150 | 35-65 | 5 | 25 | HBF |
| B20TV | 175+/-25 | 20+/-3 | 400 | 150 | 35-65 | 5 | 20 | HBF |
| B25 | 180+/-30 | 25+/-3 | 600 | 150 | 50-100 | 5 | 25 | NA |
| B30 | 220+/-50 | 30+/-3 | 1000 | 150 | 70-120 | 5 | 25 | NA |
| B05 | 75+/-15 | 5+/-3 | 200 | 120 | 10-20 | 10 | 25 | NA |
Our EPDM Foam Sheet is a high-performance closed-cell rubber foam material designed for sealing, insulation, cushioning, and vibration control applications. Made from premium EPDM rubber, it offers excellent resistance to weathering, ozone, UV radiation, moisture, and temperature variations.
With a lightweight structure, good flexibility, and reliable sealing performance, EPDM foam sheets are widely used in automotive, construction, HVAC, machinery, electrical, and industrial applications.
Key Features
Excellent weather, ozone, and UV resistance
Good resistance to moisture and aging
Flexible and lightweight
Excellent sealing and cushioning performance
Good thermal and acoustic insulation properties
Available in various thicknesses, widths, densities, and sizes
Suitable for die-cutting, lamination, and customized applications

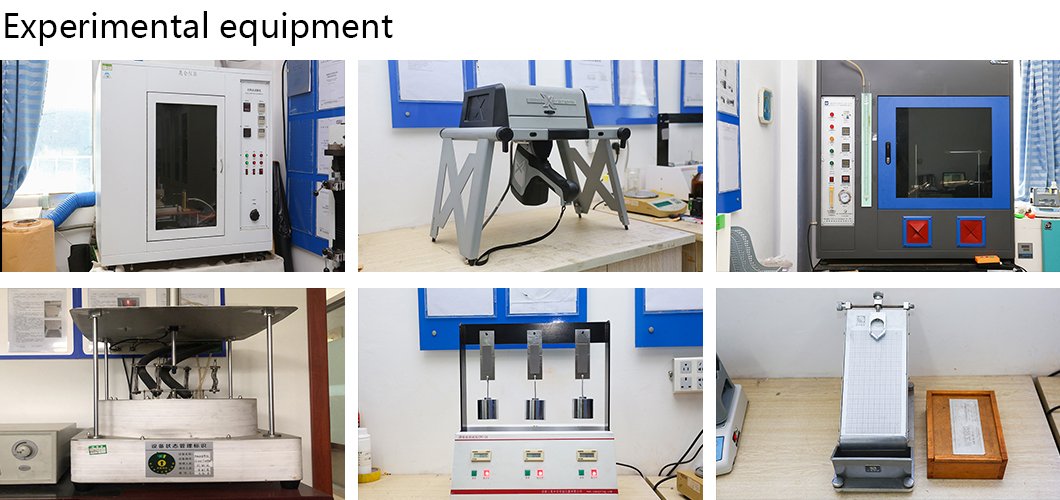

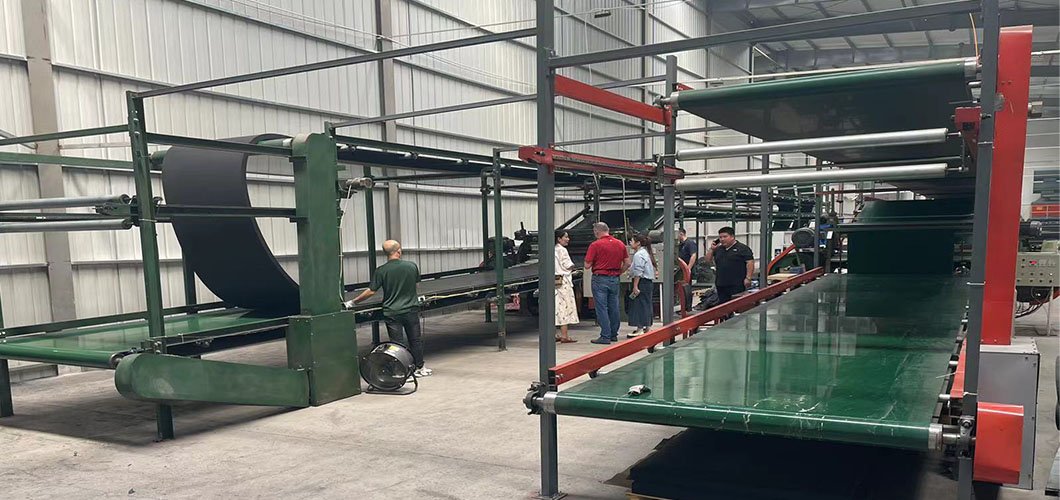

Since the establishment of the factory, we have continuously invested in professional production and testing equipment, including two automatic auxiliary machine rubber mixing centers, two precision rubber mixing centers, four large foam vulcanization production lines, large coating machines, servo precision punches, vertical cutting machines, die-cutting machines, slitting machines, pipe making machines, embossing and laminating machines, and other professional equipment; The laboratory has complete testing equipment, including hazardous substance tester, electronic tensile machine, horizontal and vertical combustion meter, glow wire tester, vulcanizer, constant temperature and humidity tester, initial viscosity tester, viscosity retention tester, thermostat, density balance, Analytical balance, etc.
Applications
EPDM foam sheets are commonly used for gaskets, seals, weather stripping, pipe insulation, automotive components, HVAC systems, vibration damping, sound insulation, and industrial equipment.
We can provide EPDM foam sheets in different specifications and densities to meet specific application requirements. Custom sizes, thicknesses, adhesive backing, and die-cut shapes are also available upon request.
Since the establishment of the factory, we have continuously invested in professional production and testing equipment, including two automatic auxiliary machine rubber mixing centers, two precision rubber mixing centers, four large foam vulcanization production lines, large coating machines, servo precision punches, vertical cutting machines, die-cutting machines, slitting machines, pipe making machines, embossing and laminating machines, and other professional equipment; The laboratory has complete testing equipment, including hazardous substance tester, electronic tensile machine, horizontal and vertical combustion meter, glow wire tester, vulcanizer, constant temperature and humidity tester, initial viscosity tester, viscosity retention tester, thermostat, density balance, Analytical balance, etc.
Packaging
