Product
40 kg/m3 density PE foam sheet
Specifications:
Density: from 33kg/cbms to 40 kg/cbms
Hardness: from 25 shore C to 30 shore C
Block Size: 100 mm x 1 m x 2 m
Thickness:1 mm to 100 mm
Color: black, white, grey, green , red, blue.
Tensile strength: 160 Kpa ~ 190 Kpa
Elonagation:160%~180%
Water absorption: 10%
Temp Range: -40 ~ 80 Celsius
Product Details
PE Foam Sheet
PE foam sheet made from low-density polyethylene which making them lightweight, flexible and strong. It’s the perfect material for all your wrapping needs. The EPE foam sheets provide enough cushioning to protect all your belongings without increasing your packaging costs. It can secure any fragile items that you are concerned about breaking during transportation or general storage.
PE foam is closed cell foam made from polyethylene and blended copolymers. It has a high level of chemical cross-linking. The result is a smooth fine-cell foam sheet suitable for many situations.
Test Item | Standard | Unit | Parameter Value |
Density | GB/T 6343 / ISO 845 | kg/m³ | 40 ± 4 |
Tensile Strength | GB/T 6344 | kPa | ≥305 |
Elongation at Break | GB/T 6344 | % | ≥190 |
25% Compression Deflection | GB/T 8813 | kPa | 60 |
Compression Set | GB/T 6669 | % | ≤2 |
Water Absorption | Internal Test | g/cm³ | ≤0.001 (Ultra-low) |
Shore Hardness | GB/T 2411 | Shore 00 | 25–30 |
Flammability Grade | UL 94 | – | UL94 HF-1 |
Working Temperature Range | Application Test | ℃ | -40℃ ~ +80℃ |
Standard Size | Factory Standard | mm | 1000×2000 / 1200×2400 |
The benefits of Polyethylene foam include:
Impact and vibration absorption
Weather and chemical resistance including splash resistance to oils and fuels
Acoustic and thermal insulation properties
Buoyancy with low water absorption
Suitability for thermo-forming and thermo-moulding
Value Add Services
Cut to the thickness as customers’needs.
Add double side adhesive tape
Cut into the width required by the customer
Die cut or CNC cutting to the part according to the drawing
FAQ
Q1: What is 40 kg/m³ PE foam sheet?A: It is closed cell EPE polyethylene foam sheet at 40 kg/m³ density. Lightweight, flexible, with good cushioning for packaging, wrapping and shock protection of fragile items.
Q2: Can you cut the PE foam sheet according to my size requirements?A: Yes. We provide multiple processing options, including custom thickness, custom width, die cut and CNC cutting per your drawings. Double sided adhesive tape is also optional.
Q3: Is this PE foam sheet water resistant?A: Yes. Thanks to its closed cell structure, it features low water absorption. It delivers good splash proof performance during storage and transportation.
Q4: What are the main applications for 40 kg/m³ PE foam sheet?A: Widely used for product wrapping, fragile goods transportation protection, buffering, thermal insulation and vibration absorption for general industry packaging.
Q5: Can I get samples for performance testing?A: Sure. Sample service is available. Please send us your required size, and we will arrange samples for you.
Q6: What colors are available?A: Standard color is white. Custom colors can be supported for bulk orders.
Q7: What is your minimum order quantity?A: MOQ varies depending on size, thickness and color. Please contact our sales team for detailed quotation.
Q8: Can this PE foam be used for thermo moulding / thermo forming?A: Yes, this material is suitable for thermo forming and thermo moulding processing.

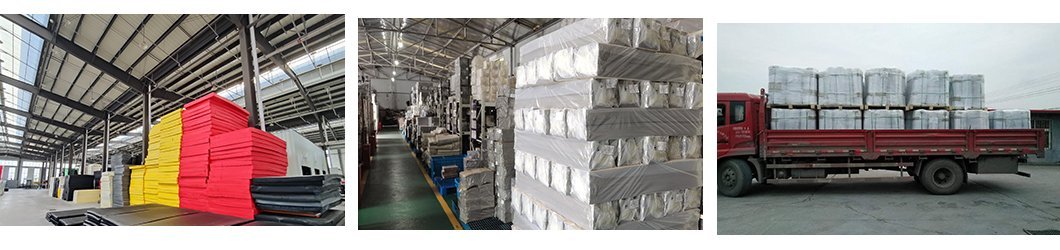

Package
